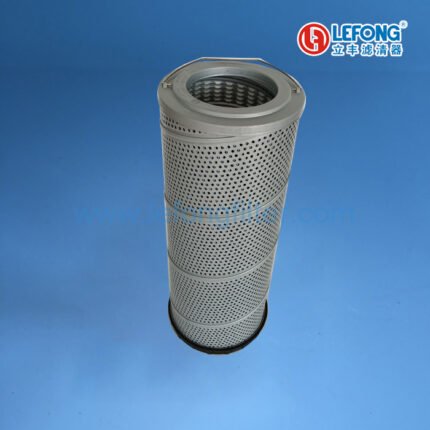

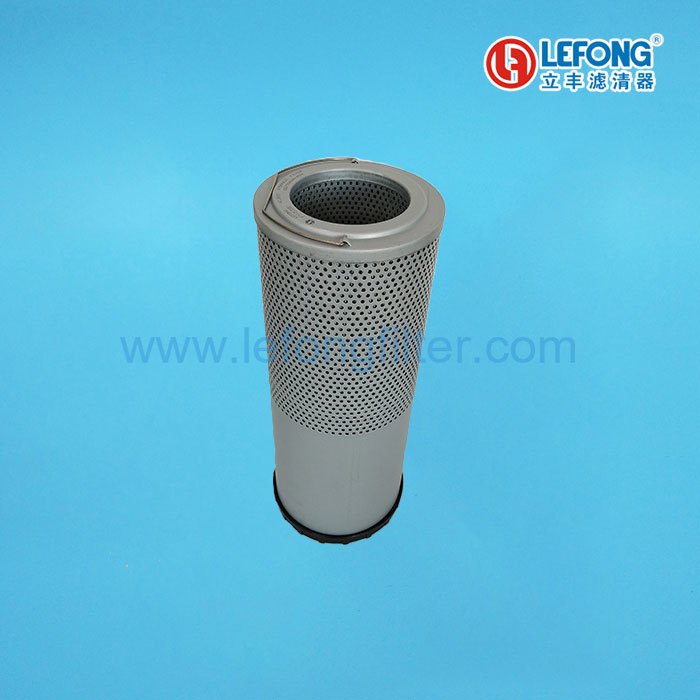

FY-5355 LC52V01006P1 Hydraulic Return Filter for Kobelco SK350-10

FY-5355 LC52V01006P1 Hydraulic Return Filter Element

The FY-5355 is a replacement hydraulic return oil filter element for Kobelco excavators using filter reference LC52V01006P1.

It is installed in the hydraulic return circuit to remove contamination from hydraulic oil before the fluid returns to the reservoir. The FY-5355 is also associated with Kobelco LC52V01004R100 and related replacement filters including HIFI FILTER SH60767, Sakura H-41110, SF-Filter HY90832 and Donaldson P585028.

The FY-5355 measures approximately 156 / 148 mm in outside diameter, 92 mm in inside diameter and 380 mm in overall height. Small dimensional differences between replacement brands can result from end-cap design and measurement position.
